JKTECH柔性供料器提供具有兼容性的零件供料,柔性供料器不受硬件的限制(如振动盘供料或托盘供料系统具有硬件的限制无法兼容其他零件供料),专为需要快速换型的产品自动化供料而设计。JKTECH Flexible feeder  provides flexible parts feeding withoutthe limitations of a hard-tooled feed system (such as a bowl-feeder or tray-feeding system). The Flexible feeder is designed for feeding a wide variety of parts with rapid change-over  times.


JK柔性供料器的用途 Intended Use of JKTECH  Flexible feeder

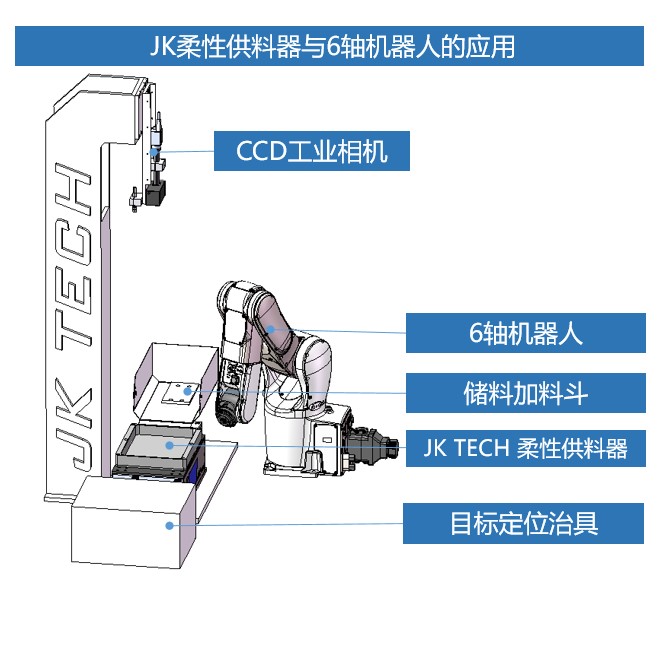

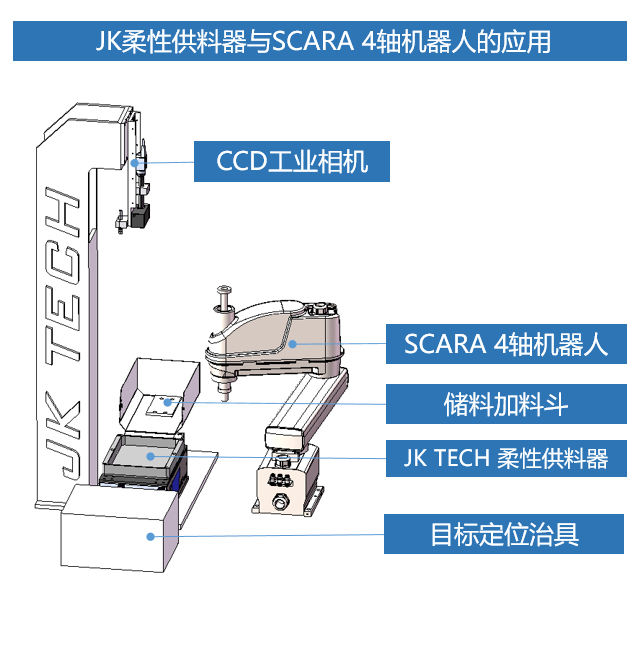

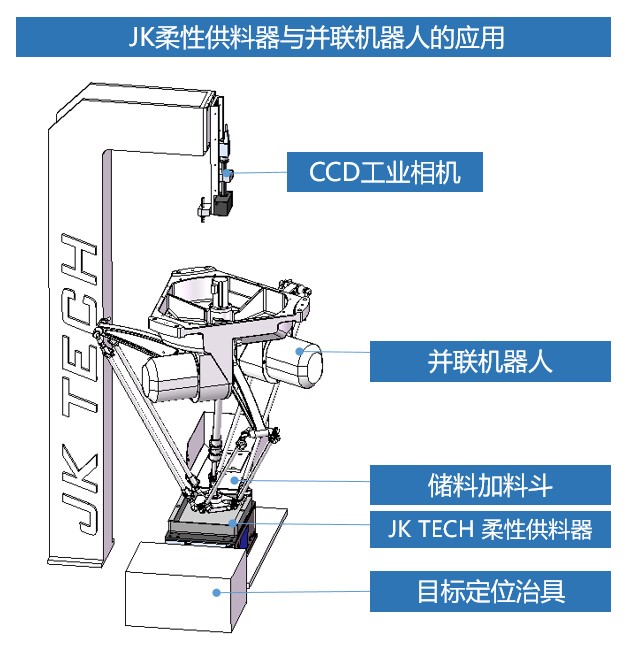

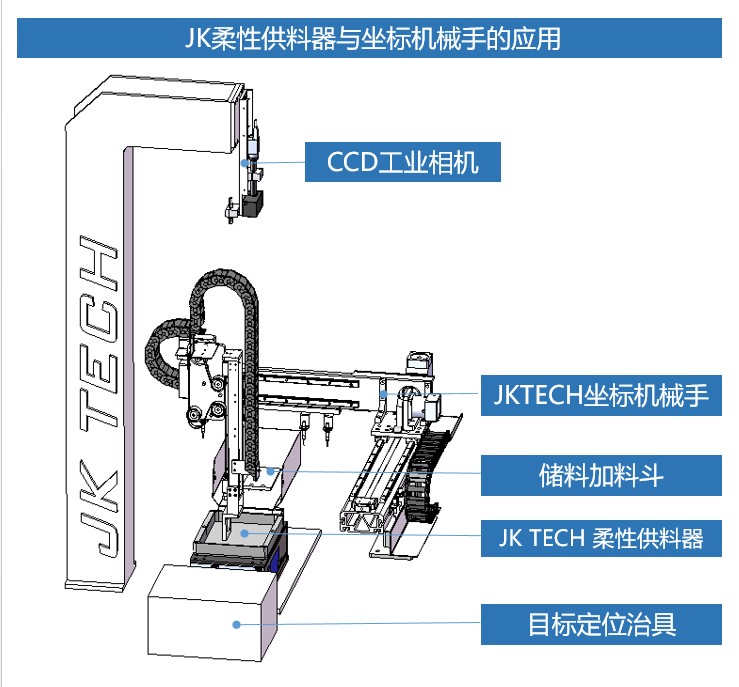

JKTECH系列柔性供料器与工业机器人和视觉系统配合使用,目的是存储和分离散装零件以便于机器人抓取。工作原理如下图所示:
The feeders of the JK TECH series are intended for the use in combination with’an industrial robot and vision system, with the purpose to store and singulate bulk parts for easy pickup by a robot. The working principal is illustrated in the diagram below.





柔性供料器适用于下列工业领域和应用领域,目的是储存和分离零件,以供机器拾取:The feeder is suitable for the following fields, for the purpose to store and singulate parts for later pickup by a robot:




  • -小零件装配、物料搬运和质量控制Small part assembly, material handling, and quality control
  •
  • -零件包装应用Part packaging applications
  •
  • -零件计数应用程序Part counting applications
  •
  • -加工机的装载Loading of process machines

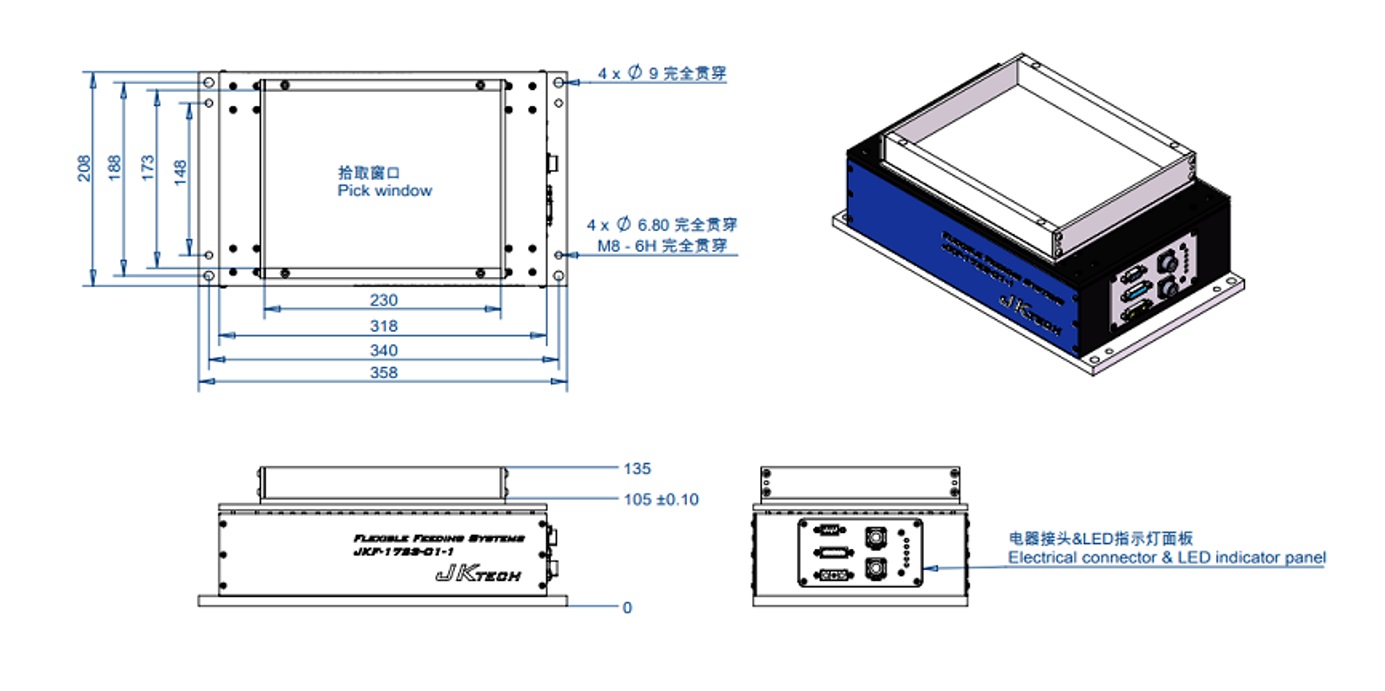

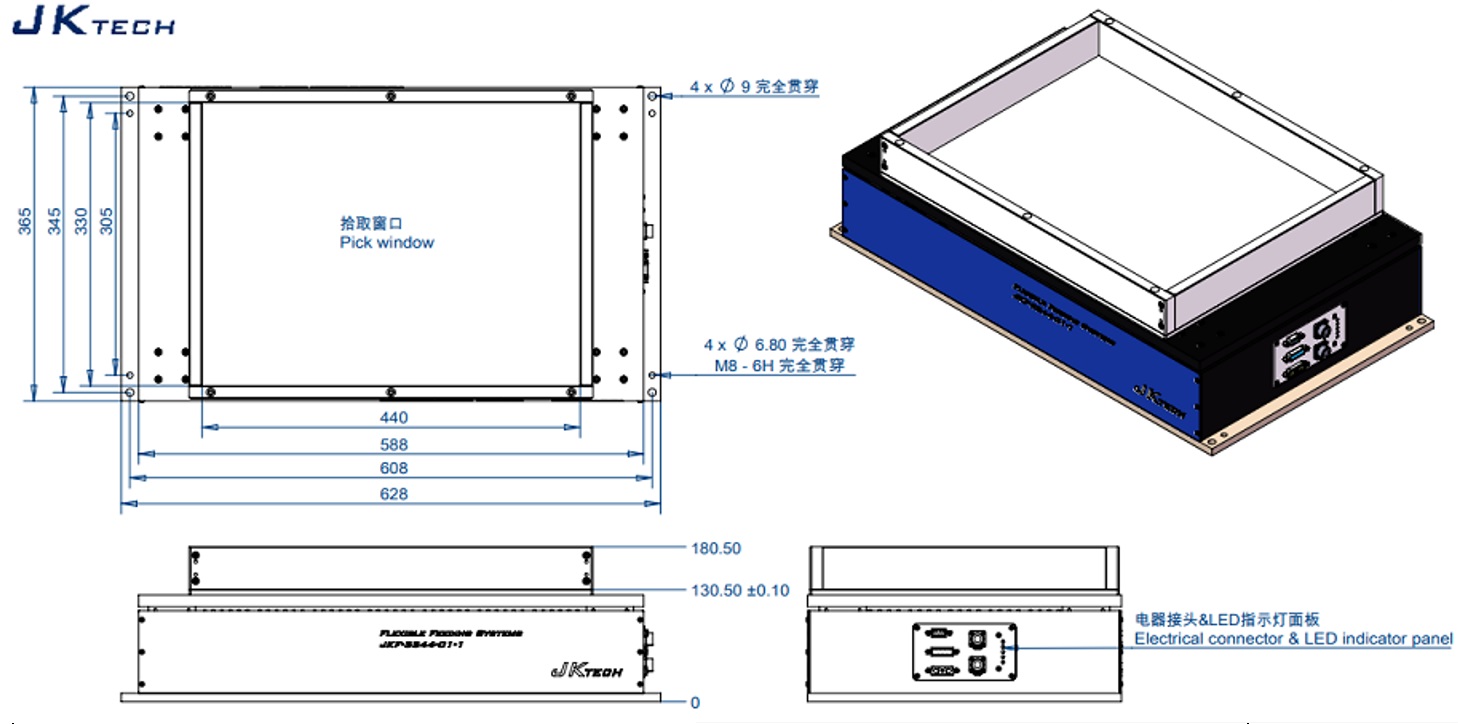

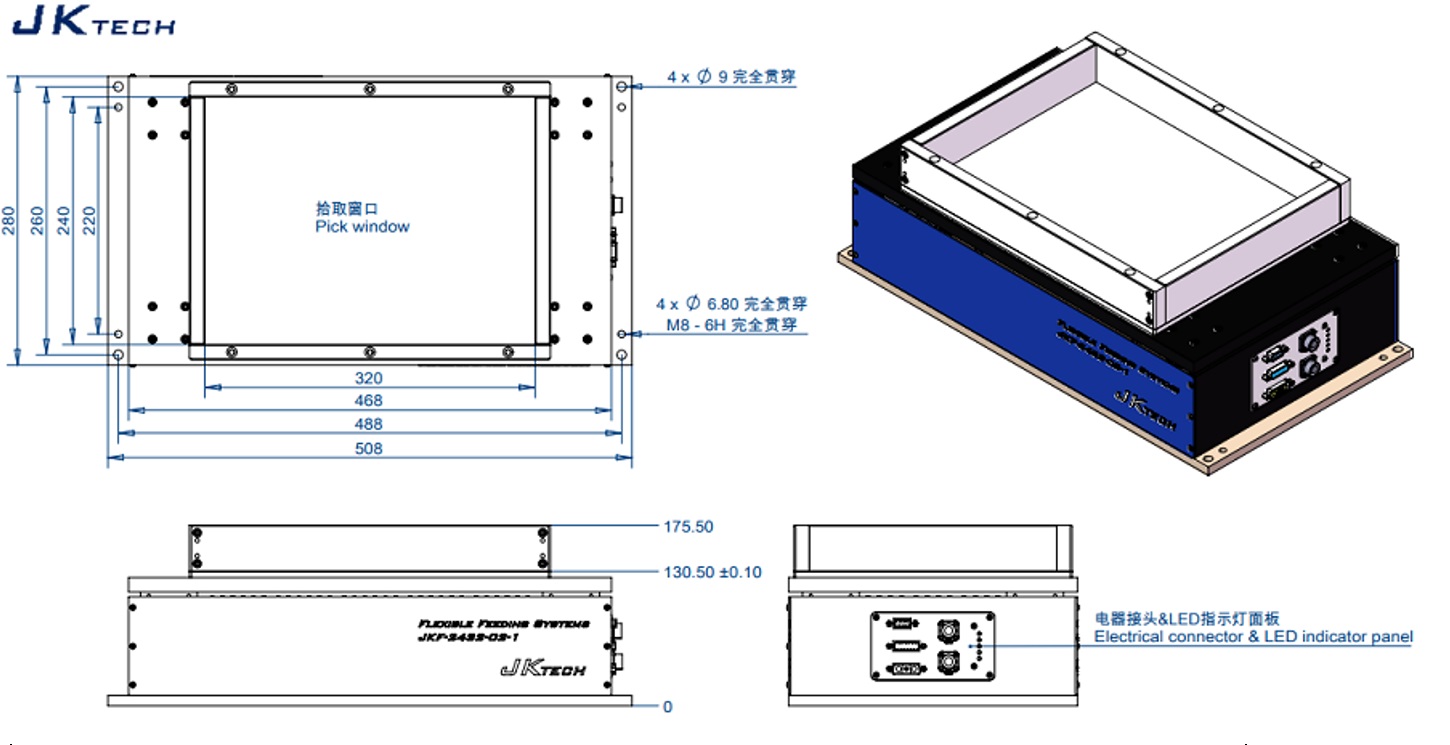

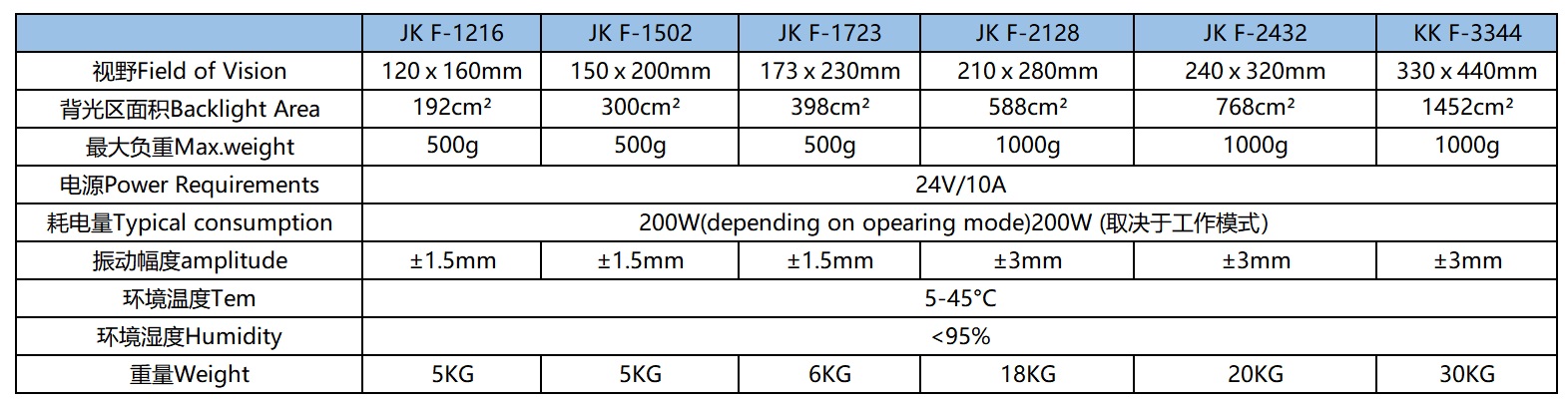

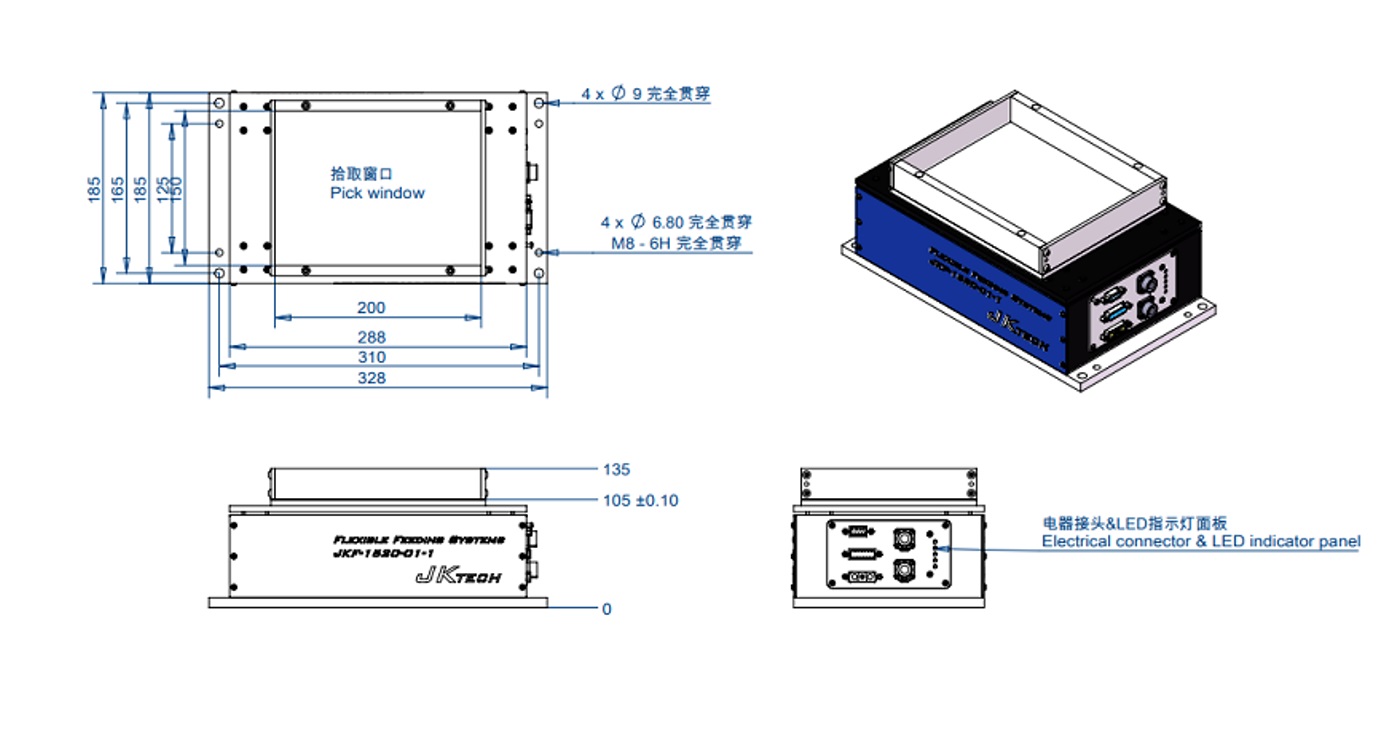

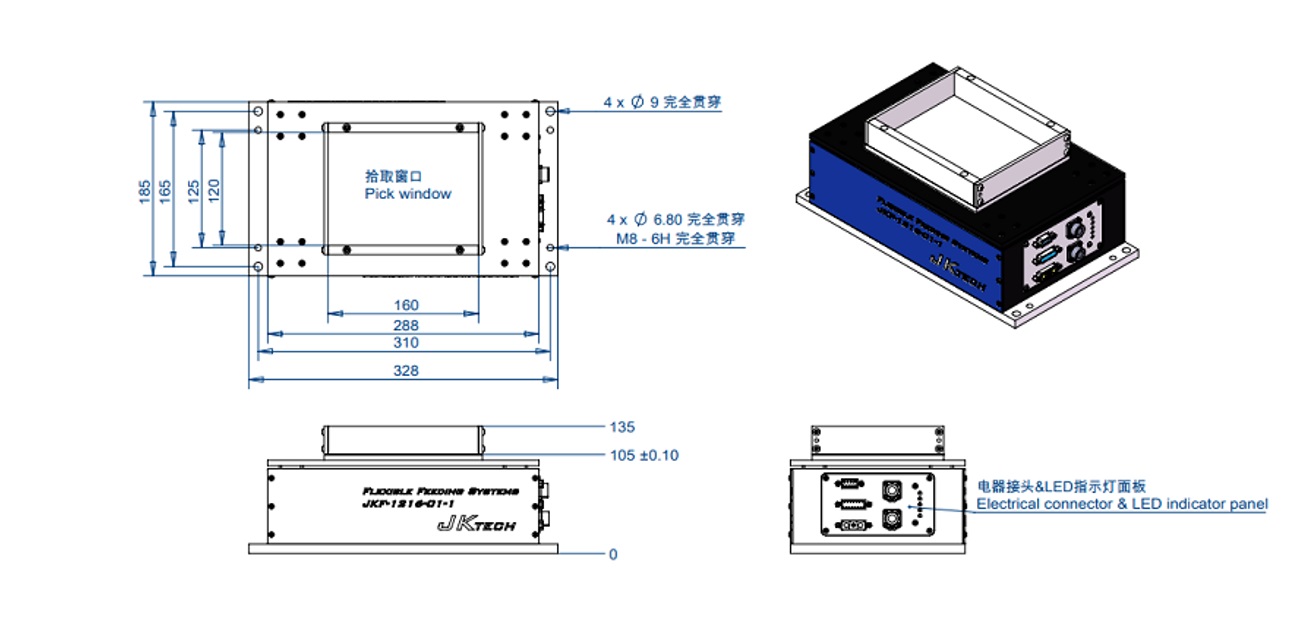

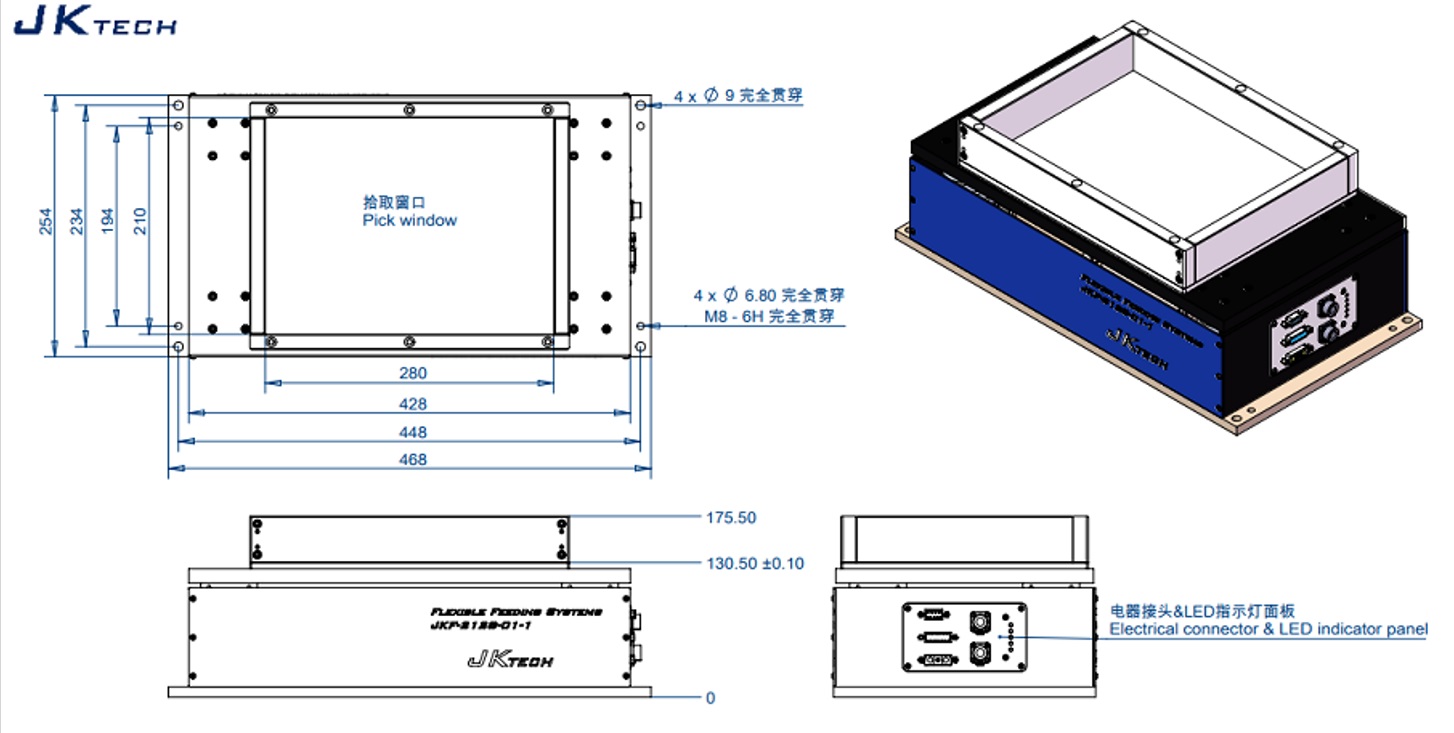

不同的型号可供选择There are different models available:


 -Feed JKF-1216

- Feed JKF-1520

 -Feed JKF-1723

 -Feed JKF-2128

- Feed JKF-2432

- Feed JKF-3344





-Feed JKF-1216




- Feed JKF-1520


 -Feed JKF-1723


 -Feed JKF-2128



 -Feed JKF-2432


 -Feed JKF-3344

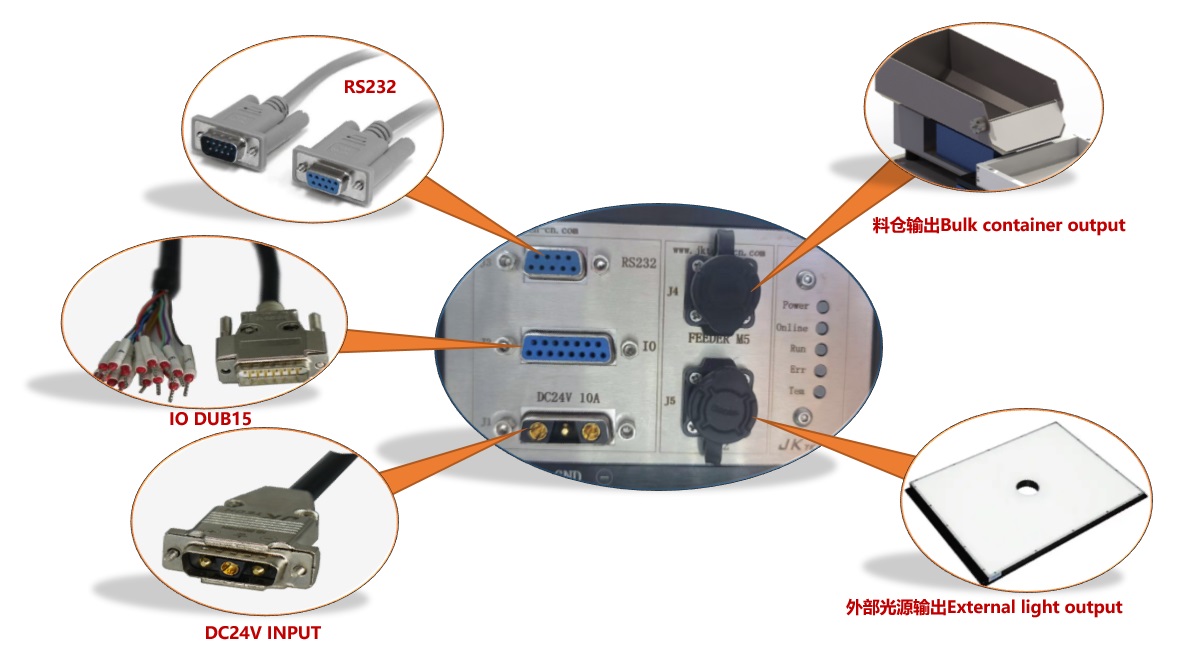

电控面板Electrical Interface Panel


-RS232通讯(通过转换装置可实现具备兼容性的通讯需求)-RS232 serial port connection (compatible connection requirements can be realized by using conversion device)

-支持组合式IO输入运行Support combined IO input operation

-IO运行状态监控输出IO operation status output

-料仓补料信号输出(DC24V中间继电器隔离输出)Bulk container output( DC24V intermediate relay output


-外部光源输出 (DC24V<1A LED)Top light output(DC24V<1A LED)

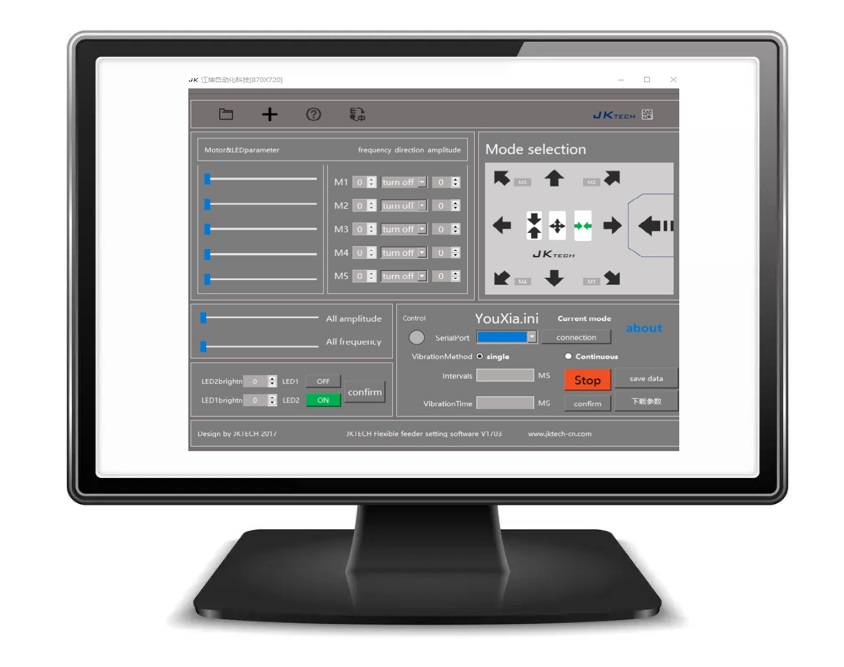

JKtech柔性供料器专用操作软件 Special operation software for JKtech flexible feeder


-Windows 系统下运行 Run under -Windows system

-轻松保存上传程序 Easily save the uploader

-中英文菜单切换 Chinese-English menu switching

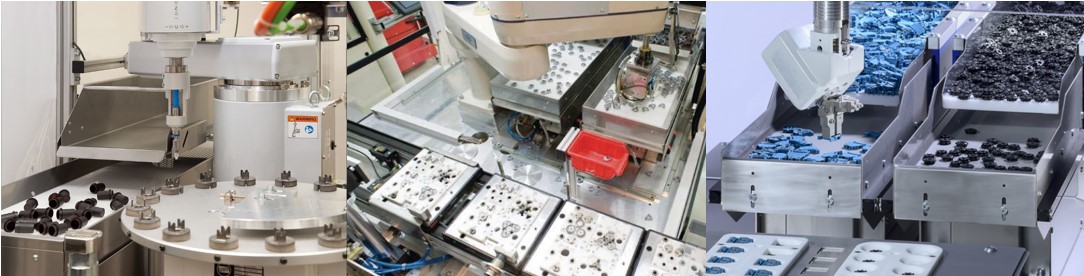

应用场景:
